PERFORATED PLATE SCREENS TYPE LR-P

The perforated plate sieves are especially used when a higher impact resistance is required, because of its greater stiffness. Typically this need occurs when the assembly is in pre-screeners or when the materials to sift has a high degree of abrasiveness, is large and/or heavy. They can be manufactured with square, round and rectangular drilling.

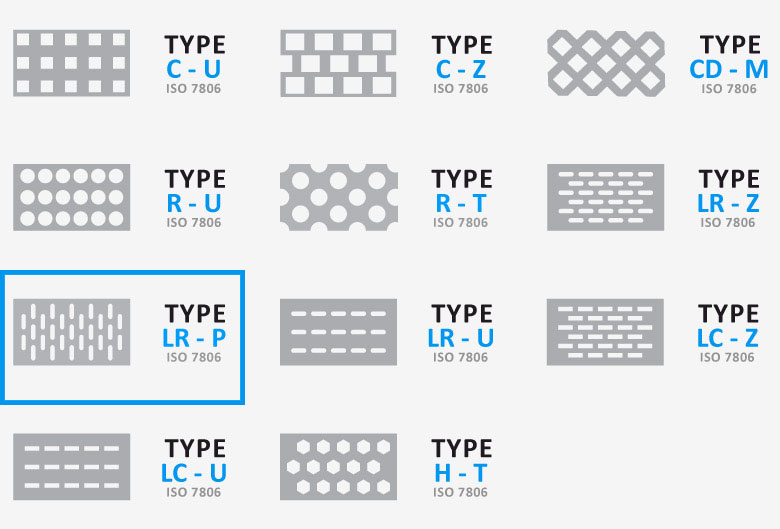

Available types of holes

Behaviour according to material

Usage

Perforated Plate screens are particularly suitable for:
– Assembly at pre-screeners due to its resistance to impact
– Materials with a high degree of abrasiveness
– Large and/or heavy materials
– Use at Trommel and Watermills

Characteristics

– Steel ST37/S235JR
– Hardox 450 or others
– Assembly with or without tensioning hooks
– Bended for use in watermills
– Curved for use in Trommel

Applicable standards

Types of holes: ISO 7806
Thickness: ISO 7805
Mild Steel (AM): EN 10025 / EN 10250
Hard Steel (AR): ISO 6506
