RUBBER SCREENS TYPE C-U

This rubber screens are constituted by anti-abrasive natural rubber, reinforced internally with synthetic mesh. It is commonly used in primary sieves because they are resistant to cuts and impact of heavy products.

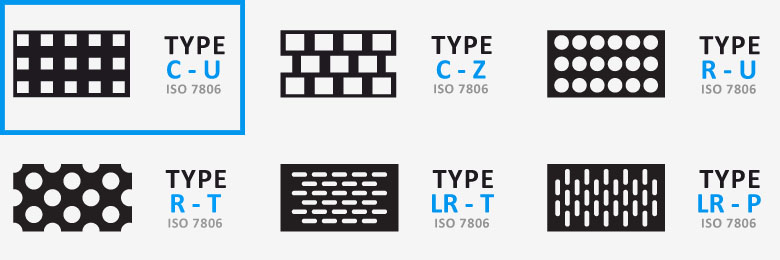

Available types of holes

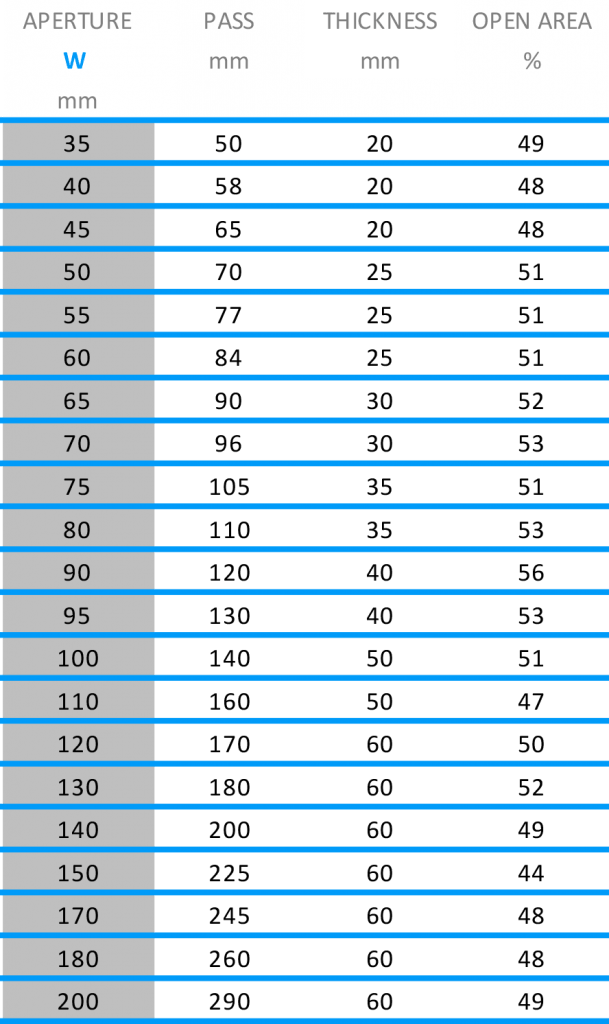

Available apertures

Available crosswise tensioning

Available types of longitudinal hooks

Usage

These screens for sieves are particularly suitable for cases where there is high impact material; there is a need to reduce noise; when it is intended to avoid corrosion problems; and when there is washing of products.

Characteristics

Work surface
– Rubber Hardness: 62 +/-5 Shore “A”
– Stress Rupture: 180 kg/cm3
– Abrasion Resistance: 90 mm3
– Enlargement: 400%
– Compression: 30%

Lower surface

– Rubber Hardness: 82 +/-5 Shore “A”
– Stress Rupture: 150 kg/cm3
– Abrasion Resistance: 120 mm3
– Enlargement: 240%
– Compression: 30%

Applicable standards

Holes type: ISO 7806
Abrasion resistance: ISO 4649
Rubber Hardness: ISO 868
