Screens constructed alternately with corrugated wire and reinforced with straight wires in the same level as the screening surface. Due to this screen construction, one can obtain a higher wear resistance and rigidity. The type D screen ensures, by its presentation, greater impact resistance of the materials, or by the fact that these are heavy in relation to the used opening. Extraordinary precision in the classification.

Available types of weave

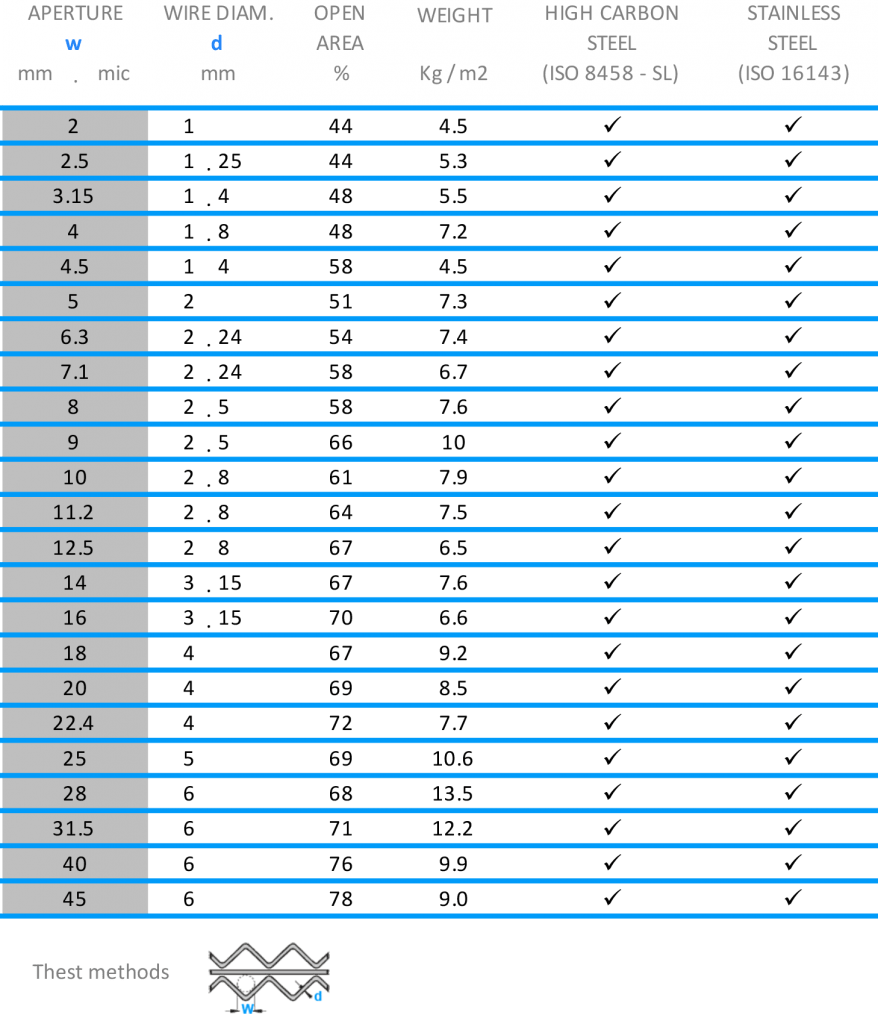

Available weave apertures and wire diameters

Hooks and Tensioning


These screens are particularly suitable for cases where the material to sift have large sizes and the sieved product is small or with high level of impact.May be applied in concreting plants, sandpits, among other possible applications.


– Flat surface
– Recommended for fouling products
– Extraordinary classification precision
– Recommended for heavy or large materials

Applicable standards

Weave apertures – ISO 2194
Type of crimp – ISO 4783
Diameter of wire – ISO 4782
Open area – ISO 4783
High-strength Steel (1HC e 2HC) – ISO 8458
Stainless steel – EN 10088 and ISO 16143
Wire screens – ISO 14315
Test method – ISO 4783 and ISO 14315

How to indicate the distances between centers of the screen supports
