SELF-CLEANING SCREENS TYPE L

Self-cleaning Screens are the first choice to the resolution of most clogging problems. Since they don’t have any crossed wires they avoid most clogging problems. Self-cleaning Screens Type L have a flat top surface, are recommended to reduce or eliminate clogging problems and represent excellent production and wear life properties. Available at 1HC high-strength steel and 6SS stainless steel.

Available types of weave

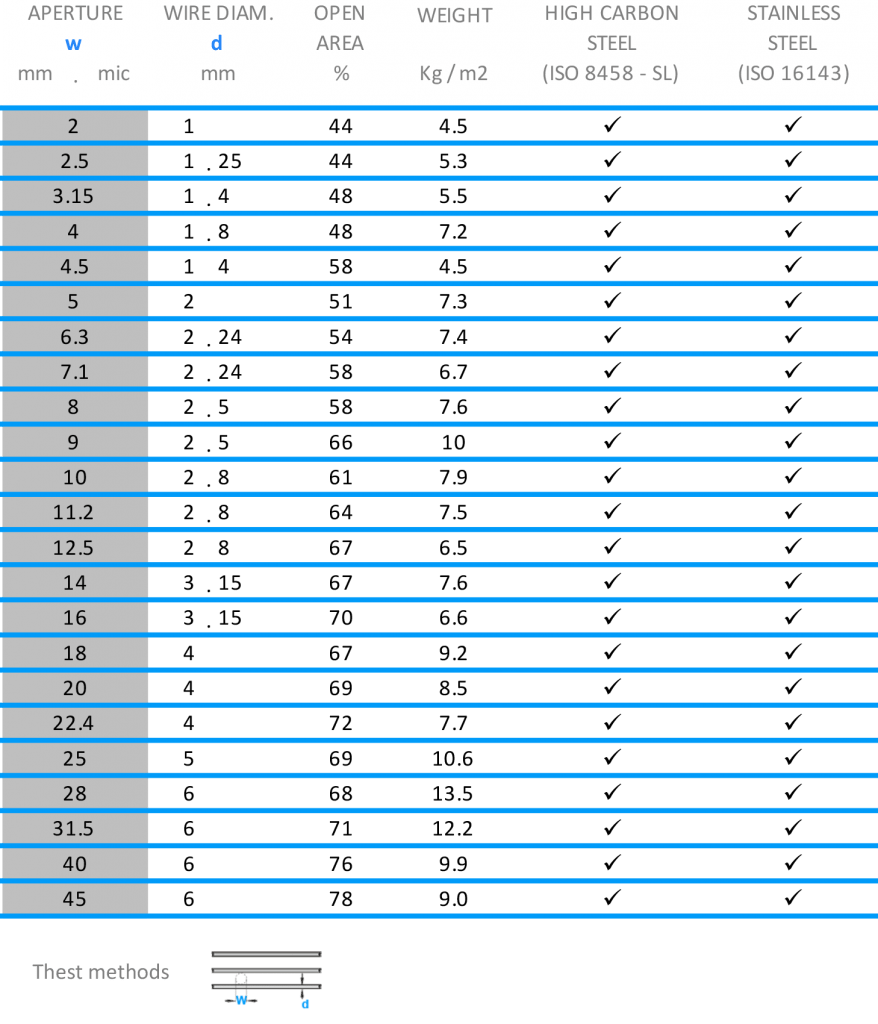

Available weave apertures and wire diameters

Hooks and Tensioning

Usage

Self-cleaning Screens are particularly suitable for cases in which the inert moisture causes clogging at the intersection of the wires in conventional screens for sieves; cases of clogging caused by contaminants residue (fibers, recycling etc.).

Characteristics

– Flat surface
– Recommended for fouling products
– Excellent production level

Applicable standards

Weave apertures – ISO 2194
Type of crimp – ISO 4783
Diameter of wire – ISO 4782
Open area – ISO 4783
High-strength Steel (1HC e 2HC) – ISO 8458
Stainless steel – EN 10088 and ISO 16143
Wire screens – ISO 14315
Test method – ISO 4783 and ISO 14315

How to indicate the distances between centers of the screen supports
