Wire screen built with previously corrugated wires in a single direction. Thus the wavy surface will be in the opposite face of the work surface, which will be completely flat. The improved precision in larger apertures makes this type of construction the perfect choice for need of high granulometric accuracy. Since the work surface is completely flat, the wear on the wires is uniform throughout the lifespan of the wire screen. In this type of the mesh, the diameters are superior to other types. For the aforementioned characteristics, TYPE E has a longer lifespan.

Available types of weave

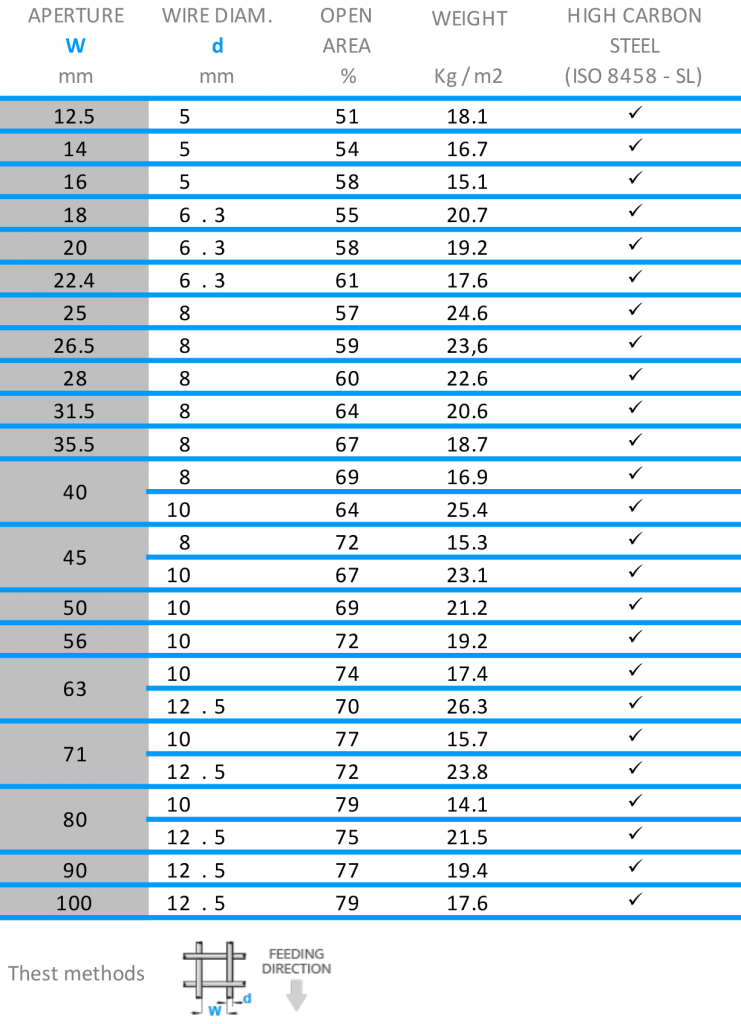

Available weave apertures and wire diameters

Hooks and Tensioning


These wire screens are usually indicated in the selection of medium and thick products, prioritizing the screen duration.


– Flat work surface
– Improved precision in larger apertures
– Granulometric accuracy
– Incremented life span

Applicable standards

Weave apertures – ISO 2194
Type of crimp – ISO 4783
Diameter of wire – ISO 4782
Open area – ISO 4783
High-strength Steel (1HC e 2HC) – ISO 8458
Stainless steel – EN 10088 and ISO 16143
Wire screens – ISO 14315
Test method – ISO 4783 and ISO 14315
